data structures to determine full mapping between fields on different meshes More...

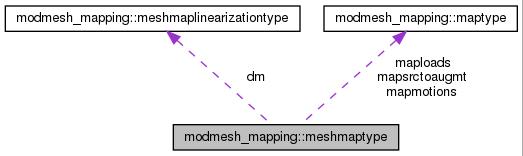

Collaboration diagram for modmesh_mapping::meshmaptype:

Public Attributes
type(maptype), dimension(:), allocatable	maploads
	mapping data structure for loads on the mesh

type(maptype), dimension(:), allocatable	mapmotions
	mapping data structure for motions and/or scalars on the mesh [-]

type(maptype), dimension(:), allocatable	mapsrctoaugmt
	for source line2 loads, we map between source and an augmented source mesh, then between augmented source and destination

type(meshtype)	augmented_ln2_src
	the augmented source mesh needed for some mapping types

type(meshtype)	lumped_points_src
	a lumped mesh needed for some mapping types, stored here for efficiency

type(meshtype)	lumped_points_dest

integer, dimension(:), allocatable	loadln2_a_mat_piv
	The pivot values for the factorization of LoadLn2_A_Mat.

real(r8ki), dimension(:,:,:), allocatable	displacedposition
	couple_arm +ScrDisp - DestDisp for each mapped node (stored here for efficiency)

real(r8ki), dimension(:,:), allocatable	loadln2_a_mat
	The n-by-n (n=3xNNodes) matrix that makes up the diagonal of the [A 0; B A] matrix in the point-to-line load mapping.

real(r8ki), dimension(:,:), allocatable	loadln2_f
	The 3-components of the forces for each node of an element in the point-to-line load mapping (for each element)

real(r8ki), dimension(:,:), allocatable	loadln2_m
	The 3-components of the moments for each node of an element in the point-to-line load mapping (for each element)

type(meshmaplinearizationtype)	dm
	type that contains information for linearization matrices, partial M partial u (or y)

Detailed Description

data structures to determine full mapping between fields on different meshes

The documentation for this type was generated from the following file:
