fast_types::fast_outputfiletype Type Reference

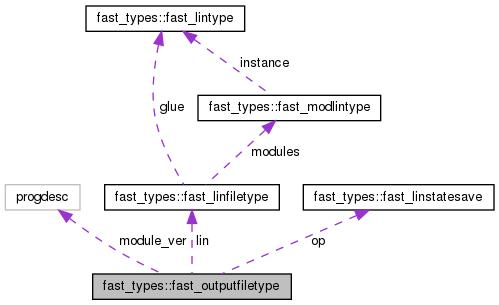

Collaboration diagram for fast_types::fast_outputfiletype:

Public Attributes
real(dbki), dimension(:), allocatable	timedata
	Array to contain the time output data for the binary file (first output time and a time [fixed] increment) [-].
real(reki), dimension(:,:), allocatable	alloutdata
	Array to contain all the output data (time history of all outputs); Index 1 is NumOuts, Index 2 is Time step [-].
integer(intki)	n_out
	Time index into the AllOutData array [-].
integer(intki)	noutsteps
	Maximum number of output steps [-].
integer(intki), dimension(nummodules)	numouts
	number of outputs to print from each module [-]
integer(intki)	unou = -1
	I/O unit number for the tabular output file [-].
integer(intki)	unsum = -1
	I/O unit number for the summary file [-].
integer(intki)	ungra = -1
	I/O unit number for mesh graphics [-].
character(1024), dimension(1:3)	filedesclines
	Description lines to include in output files (header, time run, plus module names/versions) [-].
character(chanlen), dimension(:), allocatable	channelnames
	Names of the output channels [-].
character(chanlen), dimension(:), allocatable	channelunits
	Units for the output channels [-].
type(progdesc), dimension(nummodules)	module_ver
	version information from all modules [-]
character(chanlen), dimension(nummodules)	module_abrev
	abbreviation for module (used in file output naming conventions) [-]
logical	writethisstep
	Whether this step will be written in the FAST output files [-].
integer(intki)	vtk_count
	Number of VTK files written (for naming output files) [-].
integer(intki)	vtk_lastwaveindx
	last index into wave array [-]
type(fast_linfiletype)	lin
	linearization data for output [-]
integer(intki)	actualchanlen
	width of the column headers output in the text and/or binary file [-]
character(30)	outfmt_a
	Format used for text tabular output (except time); combines OutFmt with delim and appropriate spaces [-].
type(fast_linstatesave)	op
	operating points of states and inputs for VTK output of mode shapes [-]

---

The documentation for this type was generated from the following file:

• FAST_Types.f90
