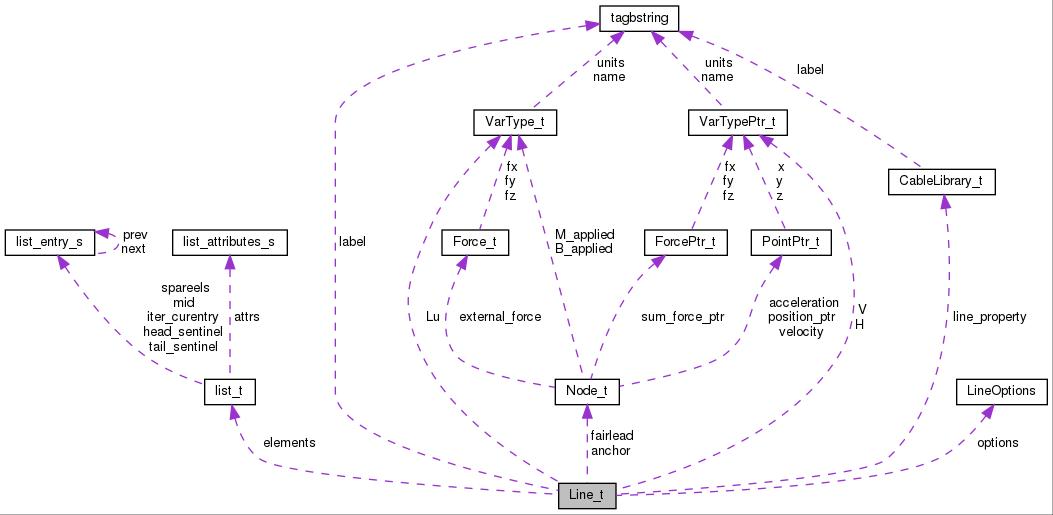

Collaboration diagram for Line_t:

[legend]

Public Attributes
CableLibrary *	line_property
	line properties

LineOptions	options
	run-time options flag

VarTypePtr	H
	Horizontal fairlead force in the local cable elemenet frame.

VarTypePtr	V
	Vertical fairlead force in the local cable elemenet frame.

VarType	Lu
	unstretched cable length [m]

bstring	label
	reference a pre-defined property in the line dictionary

double *	line_tension
	array of line tension along 's' [N]

double	psi
	angle of roation between global X and local x axis [deg]

double	alpha
	angle of inclication [deg]

double	alpha_at_anchor
	angle of inclication at anchor [deg]

double	l
	horizontal cable excursion [m]

double	Lb
	length of line touching the seabed [m]

double	h
	vertical cable excursion [m]

double	H_at_anchor
	Horizontal anchor force in the local cable elemenet frame.

double	V_at_anchor
	Vertical anchor force in the local cable elemenet frame.

double	T
	Tension magnitude [N].

double	T_at_anchor
	Tension magnitude at anchor [N].

double	damage_time
	time to damage this line and return zero force to the glue code

double	residual_norm

double	fx_fairlead

double	fy_fairlead

double	fz_fairlead

double	fx_anchor

double	fy_anchor

double	fz_anchor

list_t	elements
	LM model elements.

Node *	anchor
	Anchor node.

Node *	fairlead
	Fairlead node.

int	segment_size

int	diagnostic_type
	none=0, first iteration only=2, all iterations otherwise

int	evals
	number of function evaluations

int	njac_evals
	number of function evaluations

int	converge_reason

The documentation for this struct was generated from the following file:
