modmesh_types::meshtype Type Reference

mesh data structure More...

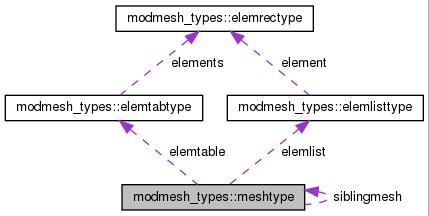

Collaboration diagram for modmesh_types::meshtype:

Public Attributes
logical	initialized = .FALSE.
	Indicate whether this mesh is initialized.
logical	committed = .FALSE.
	Indicate whether this mesh is committed.
logical, dimension(fieldmask_size)	fieldmask = .FALSE.
	Dimension as number of allocatable fields, below.
logical, pointer	remapflag => NULL()
	false=no action/ignore; true=remap required
integer	ios
	Mesh type: input (1), output(2), or state(3)
integer	refnode = 0
	optional reference node (informational only)
integer	nnodes = 0
	Number of nodes (vertices) in mesh.
type(elemtabtype), dimension(:), pointer	elemtable => NULL()
	A table of all elements in the mesh, by type.
integer	nelemlist
	Number of elements in the list (ElemList)
integer	maxelemlist
	Maximum number of elements in the list.
integer	nextelem
	Next element in the list.
type(elemlisttype), dimension(:), pointer	elemlist => NULL()
	All of the elements in the mesh.
real(reki), dimension(:,:), pointer	position => NULL()
	XYZ coordinate of node (3,:)
real(r8ki), dimension(:,:,:), pointer	reforientation => NULL()
	Original/reference orientation [DCM] (3,3,:)
real(reki), dimension(:,:), allocatable	force
	Field: Force vectors (3,NNodes)
real(reki), dimension(:,:), allocatable	moment
	Field: Moment vectors (3,NNodes)
real(r8ki), dimension(:,:,:), allocatable	orientation
	Field: Direction Cosine Matrix (DCM) (3,3,NNodes)
real(r8ki), dimension(:,:), allocatable	translationdisp
	Field: Translational displacements (3,NNodes)
real(reki), dimension(:,:), allocatable	rotationvel
	Field: Rotational velocities (3,NNodes)
real(reki), dimension(:,:), allocatable	translationvel
	Field: Translational velocities (3,NNodes)
real(reki), dimension(:,:), allocatable	rotationacc
	Field: Rotational accelerations (3,NNodes)
real(reki), dimension(:,:), allocatable	translationacc
	Field: Translational accelerations (3,NNodes)
real(reki), dimension(:,:), allocatable	scalars
	Scalars (nScalars,NNodes)
integer	nscalars
	Stores value of nScalars when created.
type(meshtype), pointer	siblingmesh => NULL()
	Pointer to mesh's (only) sibling.

Detailed Description

mesh data structure

---

The documentation for this type was generated from the following file:

• ModMesh_Types.f90
