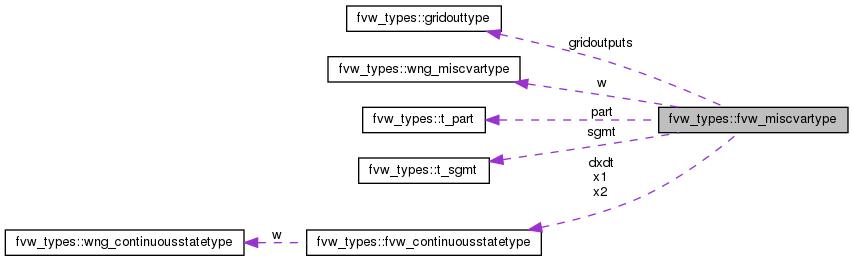

Collaboration diagram for fvw_types::fvw_miscvartype:

[legend]

Public Attributes
type(wng_miscvartype), dimension(:), allocatable	w
	Misc for all wings [-].

logical	firstcall
	True if this is the first call to update state (used in CalcOutput) [-].

integer(intki)	nnw
	Number of active near wake panels [-].

integer(intki)	nfw
	Number of active far wake panels [-].

integer(intki)	istep
	Current step number used for update state [-].

integer(intki)	vtkstep
	Current vtk output step number [-].

real(dbki)	vtklasttime
	Time the last VTK file set was written out [s].

real(reki), dimension(:,:), allocatable	r_wind
	List of points where wind is requested for next time step [-].

logical	computewakeinduced
	Compute induced velocities on this timestep [-].

real(dbki)	oldwaketime
	Time the wake induction velocities were last calculated [s].

type(fvw_continuousstatetype)	dxdt
	State time derivatie, stored for overcycling and convenience [-].

type(fvw_continuousstatetype)	x1
	States at t (for overcycling) [-].

type(fvw_continuousstatetype)	x2
	States at t+DTFVW (for overcycling) [-].

real(dbki)	t1
	Time of x1 (for overcycling) [-].

real(dbki)	t2
	Time of x2 t+DTFVW (for overcycling) [-].

logical	ua_flag
	logical flag indicating whether to use UnsteadyAero [-]

type(t_sgmt)	sgmt
	Segments storage [-].

type(t_part)	part
	Particle storage [-].

real(reki), dimension(:,:), allocatable	cps
	Control points used for wake rollup computation [-].

real(reki), dimension(:,:), allocatable	uind
	Induced velocities obtained at control points [-].

type(gridouttype), dimension(:), allocatable	gridoutputs
	Number of VTK grid to output [-].

The documentation for this type was generated from the following file:
