#include "outputstream.h"

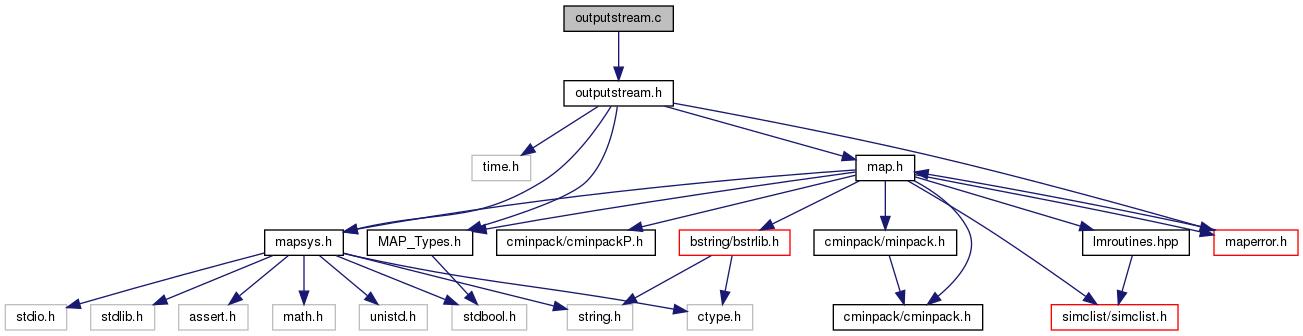

Include dependency graph for outputstream.c:

Macros
#define	GITVERSION PROGVERSION

Functions
MAP_ERROR_CODE	get_iteration_output_stream (MAP_OutputType_t y_type, MAP_OtherStateType_t other_type, char map_msg, MAP_ERROR_CODE ierr)

MAP_ERROR_CODE	write_summary_file (InitializationData init, MAP_ParameterType_t paramType, Domain data, char map_msg, MAP_ERROR_CODE *ierr)

MAP_ERROR_CODE	write_cable_library_information_to_summary_file (FILE file, Domain domain)
	Writes all cable properties defined in the MAP input file: More...

MAP_ERROR_CODE	write_node_type_to_summary_file (const int num_col, const int count_to_four, const NodeType node_type, bstring line)
	writes the node type. More...

MAP_ERROR_CODE	write_node_header_to_summary_file (const int num_col, const int count_to_four, const int node_num, bstring line)
	header for the node block. More...

MAP_ERROR_CODE	write_node_x_position_to_summary_file (const int num_col, const int count_to_four, VarTypePtr *x_pos, bstring line)
	writes the node x global displacement (position) to the node output block. More...

MAP_ERROR_CODE	write_node_y_position_to_summary_file (const int num_col, const int count_to_four, VarTypePtr *y_pos, bstring line)
	writes the node y global displacement (position) to the node output block. More...

MAP_ERROR_CODE	write_node_z_position_to_summary_file (const int num_col, const int count_to_four, VarTypePtr *z_pos, bstring line)
	writes the node z global displacement (position) to the node output block. More...

MAP_ERROR_CODE	write_node_mass_information_to_summary_file (const int num_col, const int count_to_four, VarType *point_mass, bstring line)
	writes the node point mass value to the output block. More...

MAP_ERROR_CODE	write_node_buoyancy_information_to_summary_file (const int num_col, const int count_to_four, VarType *point_buoy, bstring line)
	writes the volumetric displacement of the buoyancy module to the node output block. More...

MAP_ERROR_CODE	write_node_x_sum_force_to_summary_file (const int num_col, const int count_to_four, VarTypePtr *x_sum_force, bstring line)
	writes the x-direction sum force to the node output block. More...

MAP_ERROR_CODE	write_node_y_sum_force_to_summary_file (const int num_col, const int count_to_four, VarTypePtr *y_sum_force, bstring line)
	writes the y-direction sum force to the node output block. More...

MAP_ERROR_CODE	write_node_z_sum_force_to_summary_file (const int num_col, const int count_to_four, VarTypePtr *z_sum_force, bstring line)
	writes the z-direction sum force to the node output block. More...

MAP_ERROR_CODE	write_node_information_to_summary_file (FILE file, Domain domain, char map_msg, MAP_ERROR_CODE ierr)
	write the complete node block to the summary file More...

MAP_ERROR_CODE	write_line_information_to_summary_file (FILE file, Domain domain)
	write the complete line block to the summary file More...

MAP_ERROR_CODE	write_expanded_input_file_to_summary_file (FILE file, InitializationData init_data)
	prints the expanded MAP input file. More...

MAP_ERROR_CODE	fopen_s (FILE *f, const char name, const char *mode)

Function Documentation

◆ get_iteration_output_stream()

MAP_ERROR_CODE get_iteration_output_stream	(	MAP_OutputType_t *	y_type,
		MAP_OtherStateType_t *	other_type,
		char *	map_msg,
		MAP_ERROR_CODE *	ierr
	)

Parameters

y_type	output type, native C struct MAP_OutputType_t
other_type	other state type, native C struct MAP_OtherStateType_t
map_msg	error message
ierr	error code

Here is the caller graph for this function:

◆ write_cable_library_information_to_summary_file()

MAP_ERROR_CODE write_cable_library_information_to_summary_file	(	FILE *	file,
		Domain *	domain
	)

Writes all cable properties defined in the MAP input file:

       Cable Type          : {value}
       Diameter     [m]    : {value}
       Mass Density [kg/m] : {value}
       EA           [N]    : {value}
       omega        [N/m]  : {value}
       CB                  : {value}

Parameters

file	file where string is being dumped to
domain	internal state data Domain

Todo:: include new properties for the LM model

◆ write_expanded_input_file_to_summary_file()

MAP_ERROR_CODE write_expanded_input_file_to_summary_file	(	FILE *	file,
		InitializationData *	init_data
	)

prints the expanded MAP input file.

This can be used as a check to make sure the repeat flags are correctly interpreted.

Parameters

file	file where string is being dumped to
init_data	initialization output type, native C struct MAP_InitOutputType_t

◆ write_line_information_to_summary_file()

MAP_ERROR_CODE write_line_information_to_summary_file	(	FILE *	file,
		Domain *	domain
	)

write the complete line block to the summary file

                       | Line 1
                       | ---------------------------------------
       Material        |  Material
       Lu        [m]   |  0.000
       Lb        [m]   |  0.000
       H         [N]   |  0.000
       V         [N]   |  0.000
       T         [N]   |  0.000
       Alpha     [deg] |  0.000
       HAnch     [N]   |  0.000
       VAnch     [N]   |  0.000
       TAnch     [N]   |  0.000
       AlphaAnch [deg] |  0.000
       L^2-Norm        |  0.000
       Function Evals  |  0
       Jacobian Evals  |  0
       Term. criteria  |  0

Parameters

file	file where string is being dumped to
domain	internal state data Domain

Here is the call graph for this function:

◆ write_node_buoyancy_information_to_summary_file()

MAP_ERROR_CODE write_node_buoyancy_information_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		VarType *	point_buoy,
		bstring	line
	)

writes the volumetric displacement of the buoyancy module to the node output block.

Units are in [m^3]:

       B  [m^3]  | {value}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
point_buoyancy	node point buoyancy [m^3]
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_header_to_summary_file()

MAP_ERROR_CODE write_node_header_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		const int	node_num,
		bstring	line
	)

header for the node block.

Prints the node number.

                 | Node {number} Data"

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
node_num
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_information_to_summary_file()

MAP_ERROR_CODE write_node_information_to_summary_file	(	FILE *	file,
		Domain *	domain,
		char *	map_msg,
		MAP_ERROR_CODE *	ierr
	)

write the complete node block to the summary file

                 | Node 1 Data            Node 2 Data            Node 3 Data            Node 4 Data
                 | -------------------------------------------------------------------------------------------
       Type      |  FIX                    CONNECT                VESSEL                 FIX
       X  [m]    |   0.000                  0.000                  0.000                  0.000
       Y  [m]    |   0.000                  0.000                  0.000                  0.000
       Z  [m]    |   0.000                  0.000                  0.000                  0.000
       M  [kg]   |   0.000                  0.000                  0.000                  0.000
       B  [m^3]  |   0.000                  0.000                  0.000                  0.000
       FX [N]    |   0.000                  0.000                  0.000                  0.000
       FY [N]    |   0.000                  0.000                  0.000                  0.000
       FZ [N]    |   0.000                  0.000                  0.000                  0.000

Parameters

file	file where string is being dumped to
domain	internal state data Domain
map_msg	error message
ierr	error code

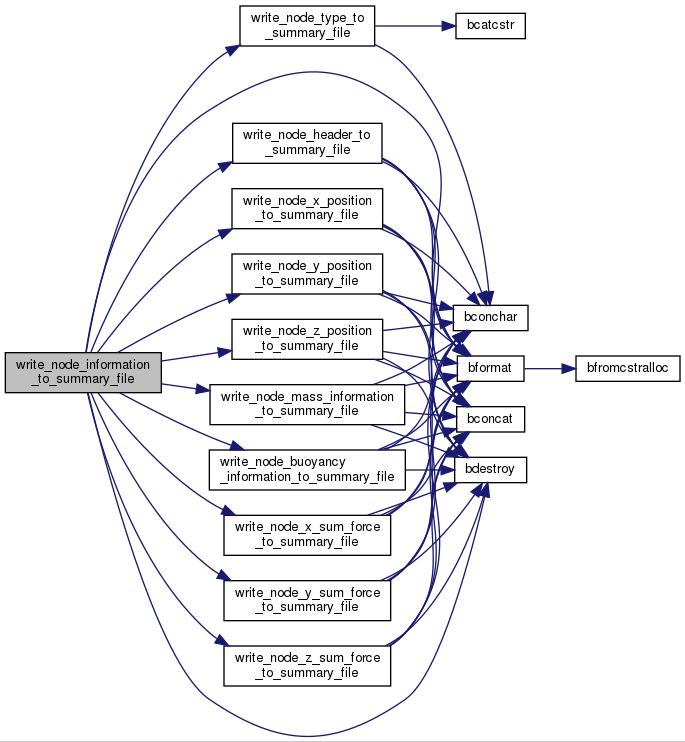

Here is the call graph for this function:

◆ write_node_mass_information_to_summary_file()

MAP_ERROR_CODE write_node_mass_information_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		VarType *	point_mass,
		bstring	line
	)

writes the node point mass value to the output block.

Units are in [kg]:

       M  [kg]  | {value}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
point_mass	node point mass [kg]
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_type_to_summary_file()

MAP_ERROR_CODE write_node_type_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		const NodeType	node_type,
		bstring	line
	)

writes the node type.

Can be VESSEL, CONNECT, or FIX

       Type      |  {VESSEL}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
node_type	identifies the node type as a NONE, CONNECT, FIX, or VESSEL
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_x_position_to_summary_file()

MAP_ERROR_CODE write_node_x_position_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		VarTypePtr *	x_pos,
		bstring	line
	)

writes the node x global displacement (position) to the node output block.

Units are in [m]:

       X  [m]   | {value}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
x_pos	node global x position [m]
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_x_sum_force_to_summary_file()

MAP_ERROR_CODE write_node_x_sum_force_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		VarTypePtr *	x_sum_force,
		bstring	line
	)

writes the x-direction sum force to the node output block.

Units are in [N]:

       FX [N]   | {value}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
x_sum_force	node global x sum force (including external forces) [N]
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_y_position_to_summary_file()

MAP_ERROR_CODE write_node_y_position_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		VarTypePtr *	y_pos,
		bstring	line
	)

writes the node y global displacement (position) to the node output block.

Units are in [m]:

       Y  [m]   | {value}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
y_pos	node global y position [m]
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_y_sum_force_to_summary_file()

MAP_ERROR_CODE write_node_y_sum_force_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		VarTypePtr *	y_sum_force,
		bstring	line
	)

writes the y-direction sum force to the node output block.

Units are in [N]:

       FY [N]   | {value}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
y_sum_force	node global y sum force (including external forces) [N]
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_z_position_to_summary_file()

MAP_ERROR_CODE write_node_z_position_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		VarTypePtr *	z_pos,
		bstring	line
	)

writes the node z global displacement (position) to the node output block.

Units are in [m]:

       Z  [m]   | {value}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
z_pos	node global z position [m]
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_node_z_sum_force_to_summary_file()

MAP_ERROR_CODE write_node_z_sum_force_to_summary_file	(	const int	num_col,
		const int	count_to_four,
		VarTypePtr *	z_sum_force,
		bstring	line
	)

writes the z-direction sum force to the node output block.

Units are in [N]:

       FZ [N]   | {value}

Parameters

num_col	column number, can be 1, 2, 3, or 4
count_to_four	number of columns currently printed in the node output block
z_sum_force	node global z sum force (including external forces) [N]
line_char	output string terminated with ' '

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_summary_file()

MAP_ERROR_CODE write_summary_file	(	InitializationData *	init_data,
		MAP_ParameterType_t *	param_type,
		Domain *	domain,
		char *	map_msg,
		MAP_ERROR_CODE *	ierr
	)

Parameters

init_data	MAP internal initialization data structure
param_type	parmeter type, native C struct MAP_ParameterType_t
domain	internal state data Domain
map_msg	error message
ierr	error code

Macros

Functions

Function Documentation

◆ get_iteration_output_stream()

◆ write_cable_library_information_to_summary_file()

◆ write_expanded_input_file_to_summary_file()

◆ write_line_information_to_summary_file()

◆ write_node_buoyancy_information_to_summary_file()

◆ write_node_header_to_summary_file()

◆ write_node_information_to_summary_file()

◆ write_node_mass_information_to_summary_file()

◆ write_node_type_to_summary_file()

◆ write_node_x_position_to_summary_file()

◆ write_node_x_sum_force_to_summary_file()

◆ write_node_y_position_to_summary_file()

◆ write_node_y_sum_force_to_summary_file()

◆ write_node_z_position_to_summary_file()

◆ write_node_z_sum_force_to_summary_file()

◆ write_summary_file()
