aerodyn_inflow_library.AeroDynInflowLib Class Reference

Inheritance diagram for aerodyn_inflow_library.AeroDynInflowLib:

Collaboration diagram for aerodyn_inflow_library.AeroDynInflowLib:

Public Member Functions
def	__init__ (self, library_path)
def	aerodyn_inflow_init (self, AD_input_string_array, IfW_input_string_array)
def	aerodyn_inflow_calcOutput (self, time, hubPos, hubOrient, hubVel, hubAcc, nacPos, nacOrient, nacVel, nacAcc, rootPos, rootOrient, rootVel, rootAcc, meshPos, meshOrient, meshVel, meshAcc, meshFrcMom, outputChannelValues)
	aerodyn_inflow_reinit ---------------------------------------------------------------------------------------------------------— def aerodyn_inflow_reinit(self): #FIXME: need to pass something in here I think. More...
def	aerodyn_inflow_updateStates (self, time, timeNext, hubPos, hubOrient, hubVel, hubAcc, nacPos, nacOrient, nacVel, nacAcc, rootPos, rootOrient, rootVel, rootAcc, meshPos, meshOrient, meshVel, meshAcc)
def	aerodyn_inflow_end (self)
def	check_error (self)
def	flatPosArr (self, initNumMeshPts, numPts, MeshPosArr, time, name)
def	flatOrientArr (self, initNumMeshPts, numPts, MeshOrientArr, time, name)
def	flatVelAccArr (self, initNumMeshPts, numPts, MeshArr, time, name)
def	check_init_hubroot (self)
def	check_init_mesh (self)
def	check_input_motions_hubNac (self, nodePos, nodeOrient, nodeVel, nodeAcc, _name)
def	check_input_motions_root (self, rootPos, rootOrient, rootVel, rootAcc)
def	check_input_motions_mesh (self, meshPos, meshOrient, meshVel, meshAcc)
def	output_channel_names (self)
def	output_channel_units (self)

Public Attributes
	library_path
	ended
	ADinputPass
	IfWinputPass
	abort_error_level
	error_status_c
	error_message_c
	gravity
	defFldDens
	defKinVisc
	defSpdSound
	defPatm
	defPvap
	WtrDpth
	MSL2SWL
	storeHHVel
	transposeDCM
	WrVTK
	WrVTK_Type
	VTKNacDim
	VTKHubRad
	InterpOrder
	dt
	t_start
	tmax
	total_time
	numTimeSteps
	numChannels
	AeroProjMod
	initHubPos
	initHubOrient
	initNacellePos
	initNacelleOrient
	numBlades
	initRootPos
	initRootOrient
	numMeshPts
	initMeshPos
	initMeshOrient
	outRootName

Static Public Attributes
dictionary	error_levels
int	error_msg_c_len = 1025
int	default_str_c_len = 1025

Private Member Functions
def	_initialize_routines (self)

Private Attributes
	_channel_names_c
	_channel_units_c
	_numChannels_c
	_initNumMeshPts
	_initNumBlades

Member Function Documentation

aerodyn_inflow_calcOutput()

def aerodyn_inflow_library.AeroDynInflowLib.aerodyn_inflow_calcOutput	(		self,
			time,
			hubPos,
			hubOrient,
			hubVel,
			hubAcc,
			nacPos,
			nacOrient,
			nacVel,
			nacAcc,
			rootPos,
			rootOrient,
			rootVel,
			rootAcc,
			meshPos,
			meshOrient,
			meshVel,
			meshAcc,
			meshFrcMom,
			outputChannelValues
	)

aerodyn_inflow_reinit ---------------------------------------------------------------------------------------------------------— def aerodyn_inflow_reinit(self): #FIXME: need to pass something in here I think.

Not sure what.

call AeroDyn_Inflow_C_ReInit

self.AeroDyn_Inflow_C_ReInit( byref(c_double(self.t_start)), # IN: time initial byref(c_double(self.dt)), # IN: time step (dt) byref(c_double(self.tmax)), # IN: tmax byref(self.error_status_c), # OUT: ErrStat_C self.error_message_c # OUT: ErrMsg_C )

self.check_error() #FIXME: anything coming out that needs handling/passing?

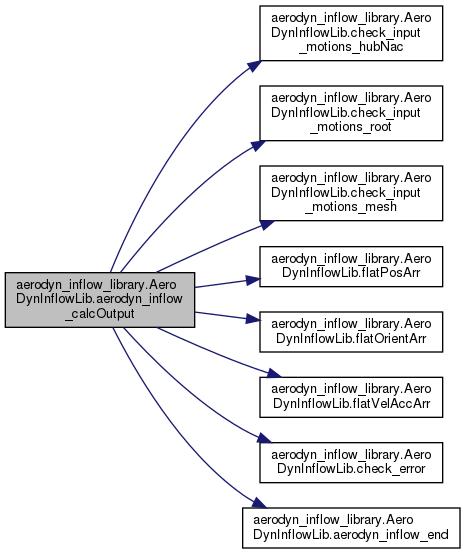

Here is the call graph for this function:

Member Data Documentation

error_levels

dictionary aerodyn_inflow_library.AeroDynInflowLib.error_levels

static

Initial value:

=  {
        0: "None",
        1: "Info",
        2: "Warning",
        3: "Severe Error",
        4: "Fatal Error"
    }

---

The documentation for this class was generated from the following file:

• aerodyn_inflow_library.py
